| VOGUE - Custom Bach Design |
 |
|
The VOGUE is a modern mono-pitch style with full wall height joinery, metal barges and optional integrated deck with matching trim. Corner windows are also optional.
Size and floor layouts are designed to client's requirements, with a wide range of cladding options and joinery sizes to suit. The Internior can be multiple rooms including kitchen, bathrooms and toilets.
Floors can be timber on piles or concrete pad.
|
 Request a
Quotation |

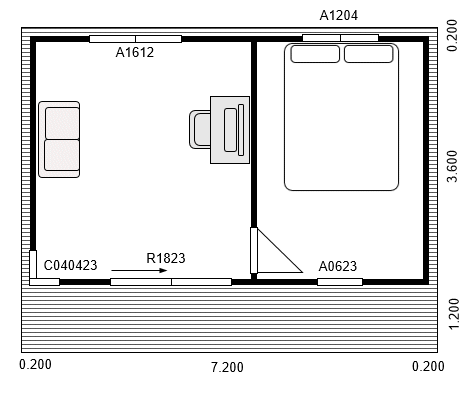

| VG7242 Sample Plan |
 |
Sample Details:.
Size: 7.2m wide x 4.2m deep - 30m²
Floor: Timber
Roof: Trapeziod Iron, 3 degrees
Cladding: Hardies Weatherboard
Joinery: Aluminium framed
Deck: Timber Pine, 7.2 x 1.2m
Available Plans:
Builders Plans
Manufacturing Plans
Building Consent Plans
Material Schedules
|
| Design Options |
| Size: |
|
|
as required (generally to 65m²) |
| Roof Pitch: |
|
|
3 to 8 degrees |
| Wall Height: |
|
|
as required (low side generally 2.4m) |
| Foundations: |
|
|
Concrete Pad |
|
|
Piles and Bearers |
| Roof: |
|
|
Zincalume - corrugate or trapezoidal |
|
|
Colorsteel - corrugate or trapezoidal |
| Cladding |
|
|
Axon Panel |
|
|
Hardies Weatherboard 180 |
|
|
Pine Weatherboards |
|
|
Linea Weatherboards |
|
|
Plywood |
|
|
Plywood and batten |
|
|
Colorsteel - fixed vertically or horizontal |
|
| Doors: |
|
|
Sliding, Hinged, French, Bifold
|
|
|
Aluminium or Timber |
| Windows: |
|
|
Aluminium and glass |
|
|
Timber |
|
|
|
| Insulation: |
|
|
as required |
| Interior Lining: |
|
|
Plywood |
|
|
Plasterboard |
|
|
MFD |
| Trim |
|
|
Pine preprimed or clear |
| Units: |
|
|
Bathroom or Laundry units as required |
|
|
Kitchen |
|
|
|
|
|
