SmartPLANZ provides a unique range of Plans for Builders wanting custom designed:
Baches, Mini Homes, Cabins, Sleepouts, Garages
Our plans provide quick and efficient ways to design to clients' requirements, to source materials and to reduce on-site building time.
All plans comply with NZS3604 and Building Code clauses.
Plans for Builders include:
Design Plans
Building Consent Plans
Material Schedules
Manufacturing Plans

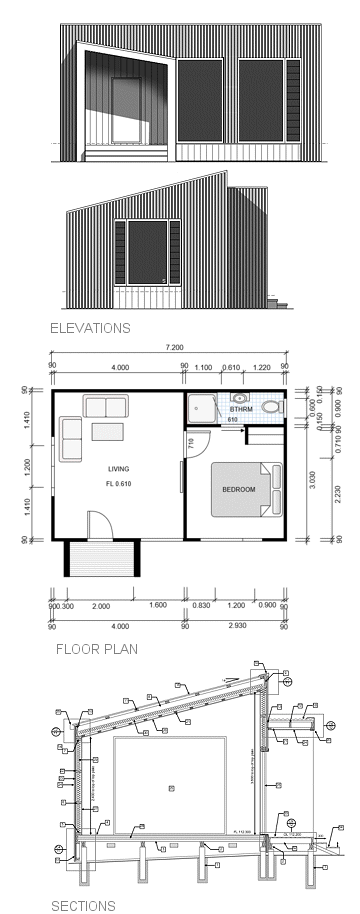

DESIGN PLANS
Building Design Plans are traditional building style plans and come in A3 format. They include:
PRELIMINARY PLANS
This is first stage in getting the plans to a workable design that best suits client's living and site requirements.
They include:
A code compliant Design
Floor Plan
Elevations
Material Specifications
FINAL PLANS:
Final Plans contain all information and details an experienced tradesman requires to construct the building on site.
Drawings fully comply with the NZ Building Code and any specific Local Authority regulations we are aware of that may apply.
These typically include:
Floor Plans
Elevations
Foundations
Floor Frame
Roof Frame
Bracing
Building Crosas Section
Building Long Section
Cladding Section Details
Joinery Section Details
Plumbing and Drainage
Material Specifications
For BUILDING CONSENT, Site plans, Elevations with HRB and Specifications as required by councils, are added to these Design Plans.
MATERIAL SCHEDULES
Our Material Schedules list all components, including fixing and fastenings.
On A4 pages for each supply category, they may be used for getting quotes or ordering materials from any local supply merchants - Timber Suppliers, Iron Manufacturers, Joinery Manufacturers etc.
MANUFACTURING PLANS
Manufacturing Plans provide full cut lists and drawings for all major components - Pre-nail wall and roof frames, Roofing and Cladding components.
These can be built on or off-site and reduce on-site assembly time.
