| MODENA - Custom Sleepouts - under 30m² non-consentable |
 |
|
The RANCHOUSE is a traditional gable style with integrated veranda adding sheltered leisure or work space.
Its specification allows this style to be habitable under the Building Code and so ideal for bedroom, home office, games room or work room.
Being under 30m² they may be built without Building Consent subject to conditions.
|
 Request a
Quotation |

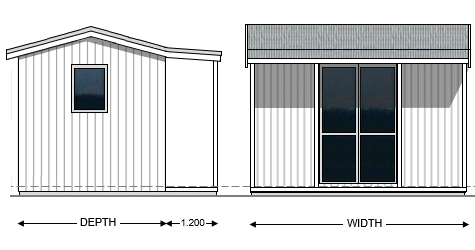

| RH6036 Sample Plan |
 |
Sample Details: .
Size: 6.0m wide x 3.6m deep - 21m²
Floor: Concrete
Roof: Corrugate Iron, 15 degrees
Cladding: Plywood and Battens
Joinery: Aluminium framed
Deck: Concrete
Available Plans:
Builders Plans
Manufacturing Plans
Building Consent Plans
Material Schedules
|
| Design Options |
| Size: |
|
|
as required (generally to 65m²) |
| Roof Pitch: |
|
|
8 to 45 degrees |
| Wall Height: |
|
|
as required (low side generally 2.4m) |
| Foundations: |
|
|
Concrete Pad |
|
|
Piles and Bearers |
| Roof: |
|
|
Zincalume - corrugate or trapezoidal |
|
|
Colorsteel - corrugate or trapezoidal |
| Cladding |
|
|
Axon Panel |
|
|
Hardies Weatherboard 180 |
|
|
Pine Weatherboards |
|
|
Linea Weatherboards |
|
|
Plywood |
|
|
Plywood and batten |
|
|
Colorsteel - fixed vertically or horizontal |
|
| Doors: |
|
|
Sliding, Hinged, French, Bifold
|
|
|
Aluminium or Timber |
| Windows: |
|
|
Aluminium and glass |
|
|
Timber |
|
|
|
| Insulation: |
|
|
as required |
| Interior Lining: |
|
|
Plywood |
|
|
Plasterboard |
|
|
MFD |
| Trim |
|
|
Pine preprimed or clear |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
